Cylinder Repair


Hydraulic cylinders get their power from pressurized hydraulic fluid, which is typically oil. The hydraulic cylinder consists of a cylinder barrel, in which a piston connected to a piston rod moves back and forth. The barrel is closed on one end by the cylinder bottom (also called the cap) and the other end by the cylinder head (also called the gland) where the piston rod comes out of the cylinder. The piston has sliding rings and seals. The piston divides the inside of the cylinder into two chambers, the bottom chamber (cap end) and the piston rod side chamber (rod end / head end).

Flanges, trunnions, clevises, and lugs are common cylinder mounting options. The piston rod also has mounting attachments to connect the cylinder to the object or machine component that it is pushing or pulling.

A hydraulic cylinder is the actuator or “motor” side of this system. The “generator” side of the hydraulic system is the hydraulic pump which delivers a fixed or regulated flow of oil to the hydraulic cylinder, to move the piston. The piston pushes the oil in the other chamber back to the reservoir. If we assume that the oil enters from cap end, during extension stroke, and the oil pressure in the rod end / head end is approximately zero, the force F on the piston rod equals the pressure P in the cylinder times the piston area

For double-acting, double-rod cylinders, when the piston surface area is equally covered by a rod of equal size on both sides of the head, there is no force difference. Such cylinders typically have their cylinder body affixed to a stationary mount.  (wiki

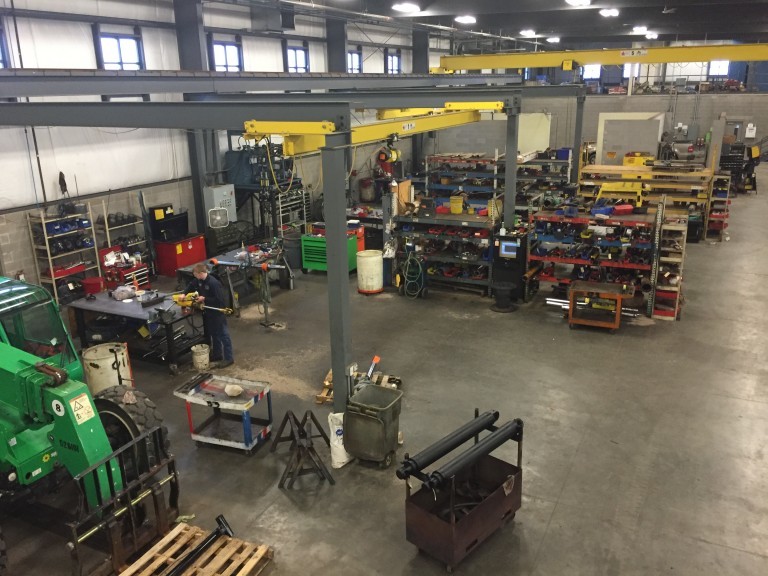

cylinder repair all phaseCylinder Repair Grand Rapids Michigan

  • Complete cylinder reseal
  • Inspections to offer repair options
  • Proper cleaning to remove harmful contaminants
  • Inventory of tube stock and chrome plated rods for quick turnaround
  • Leak and pressure testing
  • Cylinder honing
  • Retubing
  • Repair at a fraction of the cost of replacement
  • Rechroming of worn or scratched rods
  • Eye reboring
  • Telescopic cylinders
We repair all types of cylinders including: HYVA, Parker, Hydroline, Vickers, Lynair, Leach, Heil, Prince Commercial, Miller, Custom, & more!

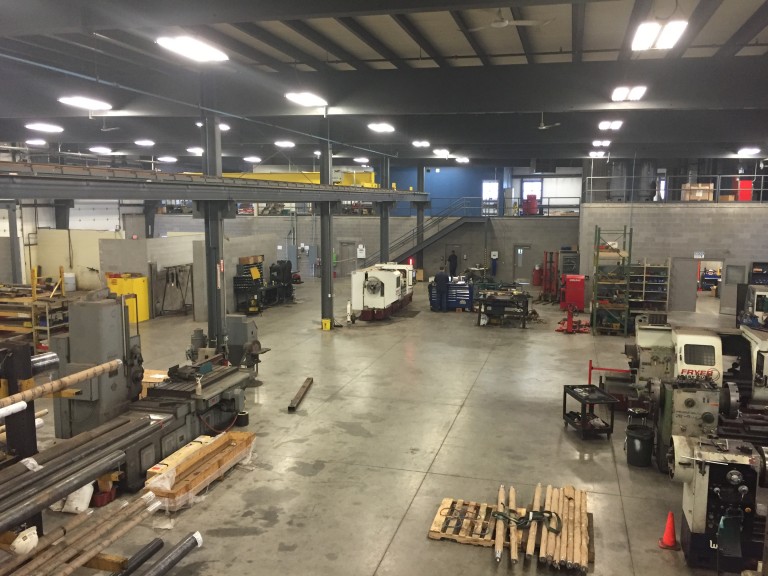

Our Machining Capabilities:
  • Cylinder design & engineering

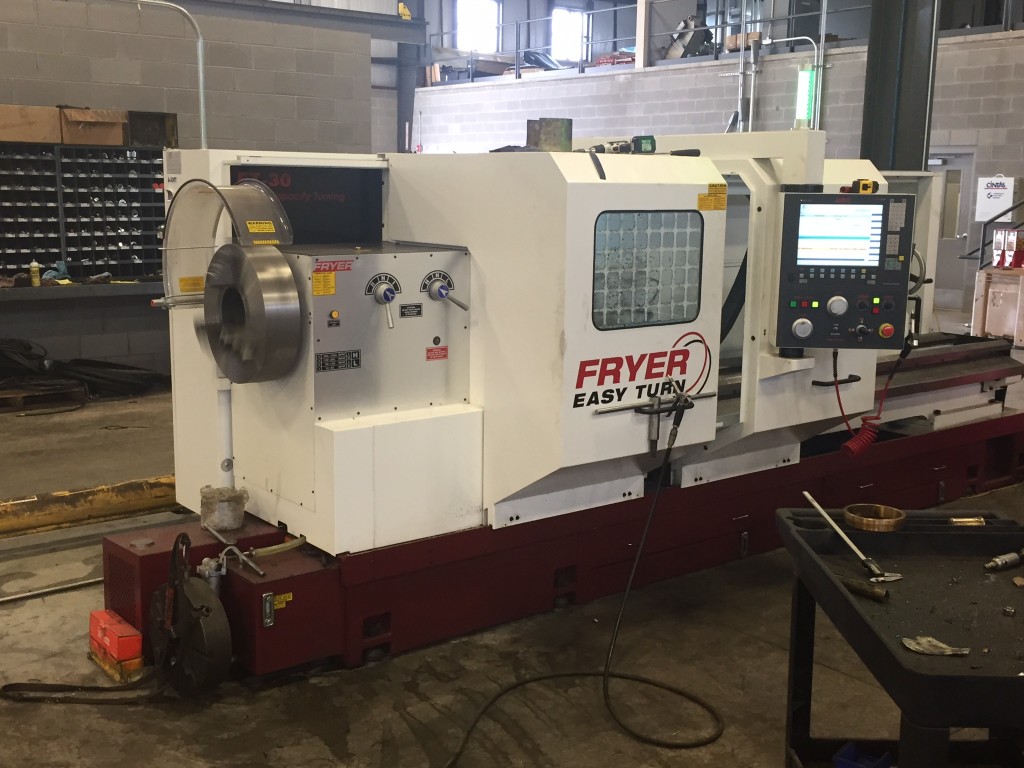

  • 2 Big Bore Fryer Easy Turn Lathes
  • 4” bore Clausing Manual Lathe
  • 6” bore Willis Manual Lathe
  • 9 ¼” bore Lansing Lathe
  • DeVlieg Jig Mill
  • MIG & TIG Welding

        Cylinder design and engineering  rechroming of scratched rods
